Non Automatic Reset but OFF Self- Holding type (safer)
Reliable PTC heater installed ( 2.5k ohm or 10k ohm)
Complies with EN Standard (Keep OFF at Minus 20C)
Complies with UL Standard (Keep OFF at 0C 125V/ 250V)

Operating
Temp

Tolerance
Reset
not automatic reset
Breaking capacity
8A 125V AC 3000 cycle (resistive)
5A 250V AC 3000 cycle
(resistive)
Model
Agency
Standard
Category
Electrical Ratings
Max Temp
File No.
EP41P
EP42P
UL
UL 2111
Motor Protector
125V/250V AC 0.373Kw
140C
E52703
c-UL
CSA C22.2 No.24
Motor Protector
125V/250V AC 0.373Kw
140C
E52703
EN(VDE)
EN60730-2-2
Thermal Motor Protector
Voltage Maintained
250V AC
140C
892100-
4510-0038
EN(VDE)
EN60730-2-9
Thermal Cut-out
Voltage Maintained
5A (3.5A)/ 250V AC resistive
(inductive) 3000 cycles
140C
892100-
4510-0037
CQC
GB14536.10
Thermostat
(Non-fused bimetal type)
8A / 125V, 5A / 250V AC
140C
CQC04002009088
CQC03002008318

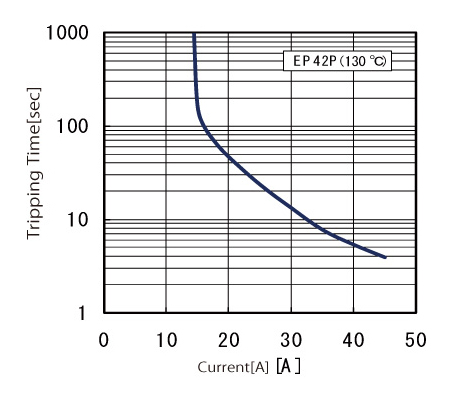

>>Tripping Time vs Current (at 25C)
>>Operating Temp Drop due to Current
Mounting method
In case of sensing heat directly from the heat source, place the thermal protector to touch it’s opposite surface of “UCHIYA” printed surface to the heat source.
*In case of sensing convection heat or heat emission, please contact Uchiya.
The condition of sensing heat differ case by case.
Overload, Overheat Protector
Small Motor
Lighting Fixture
Power tool
Gardening Tool
Vending Machine
Industrial Machine
