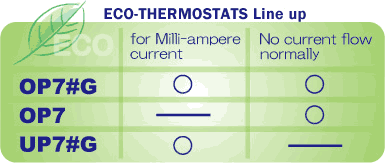

The smallest EN recognized normally open type thermal protector sealed in PBT enclosure |
|
|
|

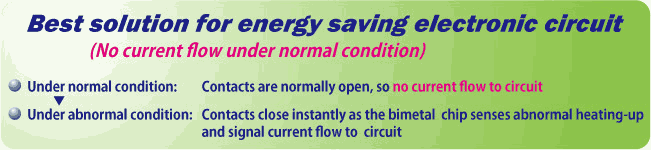

Normally open type(Contacts close when temperature rises) | |
 |
||
| Specifications | Dimensions (mm) | Applications | ||||
| Operating Temp | 55`150 i5 stepj |
 |
Overheat Protector | |||
| Tolerance | }5,}7,}10 | Switching Power Supply | ||||
| Differential | 30}15K(Standardj | UPS | ||||
| Breaking capacity |
4A 125V AC 6000 cycle(resistive) 2.5A 250V AC 10000 cycle(resistive) |
Solenoid | ||||
| Other Electronic Devices | ||||||
| Delay Timer | ||||||
| Ventilating Fan | ||||||
| Safety Approval* *Contact us for approved conditions in detail. | ||||||
Model |
Agency |
Standard |
Category |
Electrical Ratings |
Max Temp |
File No. |
|
OP71 OP72 |
EN(VDE) |
EN IEC 60730-2-22 |
Thermal Motor Protector |
250V AC |
150 |
40003837 |
EN(VDE) |
EN IEC 60730-2-9 |
Thermal Cut-out |
2.5A(1.6A)/250V AC resistive(inductive) 10000cycles |
150 |
40023061 |
|
CQC |
GB14536.10 |
Thermostat (Non-fused bimetal type) (Normally open) |
4A/125V, 2.5A/250V AC |
140 |
CQC04002009090 CQC03002008320 |
|
|
 |
Mounting method |
| |||
In case of sensing heat directly from the heat source, place the thermal protector to touch itfs opposite surface of gUCHIYAh printed surface to the heat source. *In case of sensing convection heat or heat emission, please contact Uchiya. The condition of sensing heat differ case by case. |
||||||
|
||||||
