Self-holding open contacts with an installed PTC heater | |
|
|
Innovative structure effectively suppressing abnormal arcing | |
|
|
High electrical capacity | |
|
|
Available with operating temperatures up to 160℃ (UL / c-UL) and up to 170℃ (VDE, CQC) | |
| Specifications | Dimensions (mm) | Applications | ||||
| Operating Temp | 60℃～170℃ (Available in increments of 5℃) |
 |
Overheat Protector | |||
| Hair Dryers | ||||||
| Tolerance | ±5℃ or ±5% (Please ask us for details) |
Blenders | ||||
| Reset | Depending on Safety Standard Categories |
Food Processors | ||||
| Breaking capacity |
20A 125V AC 6000 cycle(resistive) 13A 250V AC 6000 cycle(resistive) |
Fan heaters | ||||
| Safety Approval* *Contact us for approved conditions in detail. | ||||||

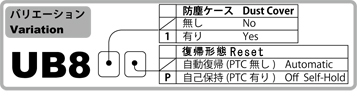

Model |
Agency |
Standard |
Category |
Electrical Ratings |
Max Temp |
File No. |
|
UB8P
|
UL / c-UL |
UL60730-1,-2-9 c-UL： CAN /CSA E 60730-1,-2-9 |
Temperature Limiter |
16A 125 / 250V AC resistive 6000 cycles 2FLA, 12LRA, 125 / 250V AC 6000 cycles |
160℃ |
E50124 (Model UB8P PF) |
UL |
UL873 |
Regulating |
20A/125V AC resistive 6000 cycles |
150℃ |
E50124 |
|
UL |
UL873 |
Regulating |
13A/250V AC resistive 6000 cycles |
150℃ |
E50124 |
|
c-UL |
CSA C22.2 No.24 |
Appliance Control |
20A/125V AC resistive 6000 cycles |
150℃ |
E50124 |
|
c-UL |
CSA C22.2 No.24 |
Appliance Control |
13A/250V AC resistive 6000 cycles |
150℃ |
E50124 |
|
EN(VDE) |
EN IEC 60730-2-9 |
Voltage Maintained Temperature Limiter |
16A(2A)/ 230～250V AC resistive(inductive) 6000 cycles |
170℃ |
40019064 |
|
EN(VDE) |
EN IEC 60730-2-9 |
Voltage Maintained Thermal Cut-out |
16A(2A)/ 230～250V AC resistive(inductive) 6000 cycles |
125℃ |
40019064 |
|
CQC |
GB/T 14536.10 |
Thermostat (Non-fused bimetal type) |
25A/125V, 13A/250V AC resistive 6000 cycles |
170℃ |
CQC11002059930 CQC11002059934 |
|
CB TEST CERTIFICATE |
IEC 60730-2-9 |
Voltage Maintained Temperature Limiter |
16A(2A)/230～250V AC resistive(inductive) 6000 cycles |
170℃ |
Issued July 13, 2017 |
|
